blister packing machine

Unit Price︰

CNY ¥ 1 / pc

Minimum Order︰

1 pc

Share on:

Product Description

Description:

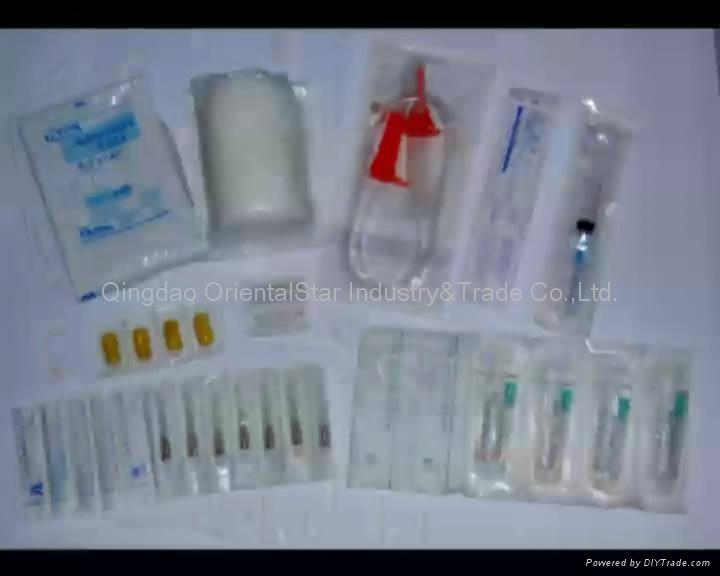

It is used to package one-off medical products, such as injectors, needles, and infusers , medical dressing products, gauze, bandages and meat products.
Feature:
1-Most of the components are made of stainless stee.
2- Controlling system: Mitsubishi PLC
3-Touch screen: Wenyew
4-Driving system:, Mitsubishi server
5-Pneumatic components: SMC,ORIGA,MINDMAN,
6-Vacuums: BUSCH
7-Photocell: Omron
8-Double row packaging is available
Specification:
1-Packaging film:
Upper film: dialyzing paper, DuPont Tyvek and other plastic film
     Lower film: PP/PE , PA or PVC PET
2-Material Roll size:
Upper film: Width 405-415mm, Core diameter: 3"  Max. diameter : ≤400mm
Lower film: Width 421-422mm, Core diameter: 3"  Max. diameter : ≤400mm
3-Max. blister depth: 80mm
4-Max width of the product: 400mm
5-Min width of the product: 19mm
6-Capacity:
PP/PE or PA (lower film)                       15 moulds/min
PVC or PET  (lower film)                        10 moulds/min
Vacuum packaging                                 8 moulds/min
Filling-nitrogen packaging                      8 moulds/min
7-Compressed air: ≥0.6 Mpa
8-Power: 3 phase AC 380V 50Hz   15KW
9-Dimension:  7300mm x 1100mm x 1800mm
10-Weight: 2000kg
Optional equipment:
1-  Flexible printer:
2-  Mould
3-  Waste film collecting device


Product Image
